Request quote for pricing.

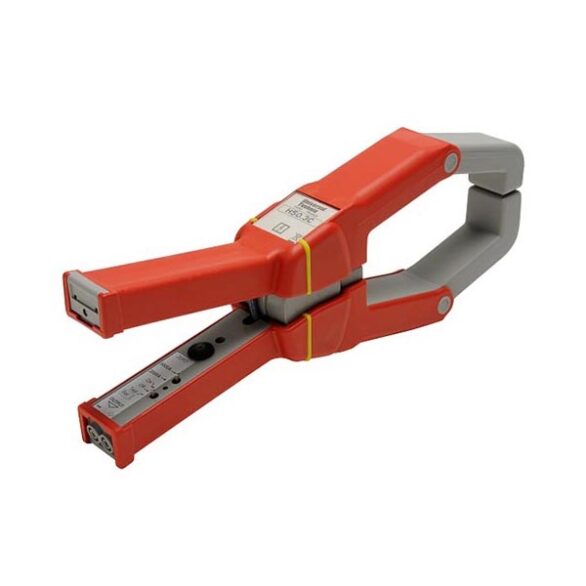

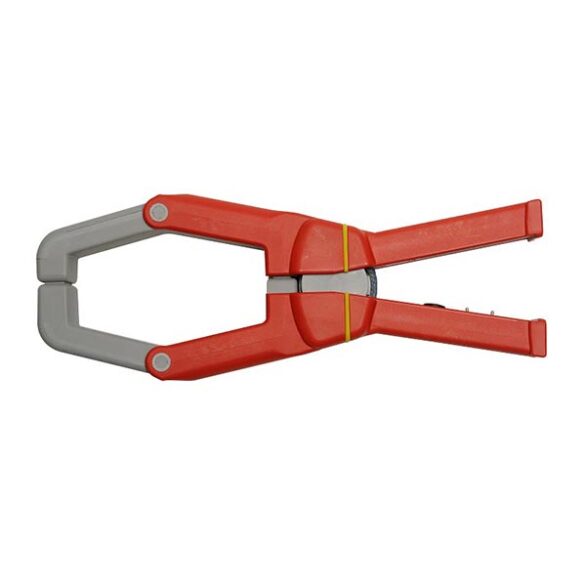

The HC current probe has been designed for use with multimeters, recorders, power analysers, safety testers etc. for accurate non intrusive measurement of AC/DC current. Using Hall effect technology, the HC can measure currents from 20A to 4000A over a frequency range of DC to 1kHz. The HC series clamp has AC/DC voltage output.
The HC clamp can enclose cables with a max. diameter of 72mm.
The HC clamp can enclose busbars 127x43mm and 100x53mm.
600 VRMS, Category III, Pollution Degree 2
Use of the probe on uninsulated conductors is limited to 600 V ACRMS or DC and frequencies below 1kHz.
1 Year Warranty
(ranges are in dc or peak to peak ac)
